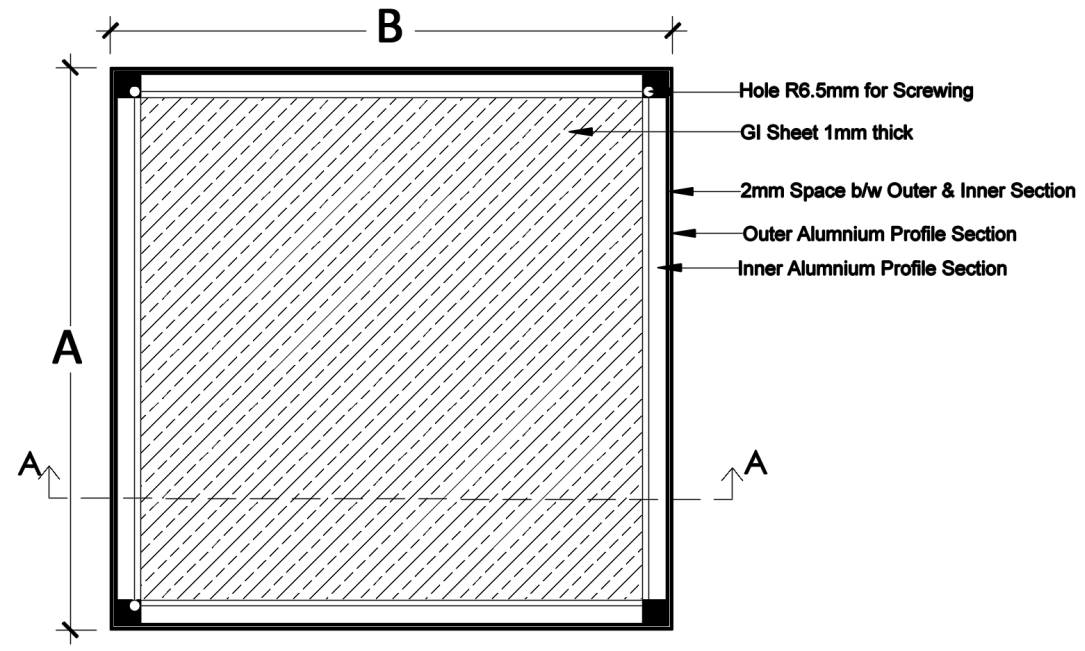

Metaveil Manhole Covers are air-tight and water-tight covers with an easy to install system and seamless design that blends in with the floor pattern disguising itself. Our manhole covers are very lightweight, featuring a highly aesthetic extruded construction. In Addition to the high quality, it is also more efficient than stainless steel covers.

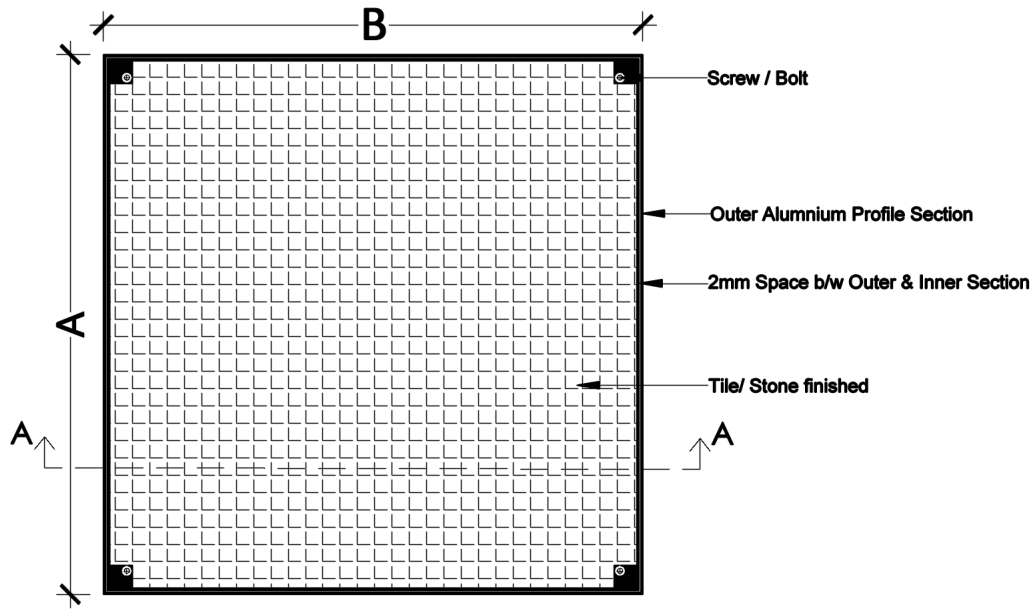

The cover comes with allen key system which not only makes it easier to open the bolts but also acts as a handle by screwing into the same space and stilts up the cover for easy manhole access. All our manhole covers are clear anodize coated for extremely good durability and unlike traditional manhole covers, does not rust, or get jammed due to the special throw-out rubber system. Metaveil Manhole covers are the perfect choice for areas where an aesthetically pleasing inspection cover is required. The recessed top allows tiles or stone to be installed blending in with the floor pattern.
Anodised Aluminium frame & cover
Corrosion resistant
Reinforcement mesh included with the cover
Easy tools for openings & operations
Secure & easy installation – firm bond with concrete (profiled frame or anchor)
Ease of locking, unlocking &lifting with two lifting keys included
Suitable for internal & external usage
EPDM seal with “T-rubber” seal for dust, odour & water resistance
These manhole covers are supplied with two lifting keys as standard so you will not need any additional tools or components to remove these covers once fitted. These keys are galvanized making them corrosion resistant and will remain durable over long periods of time. These keys are used by simply using the allen-key head end to remove the bolt from the keyhole, then swapping to the threaded end to screw into the cover.
To keep these covers water tight and air tight, they have been linked with an elasticated rubber seal built into the side of the outer frame. This seal allows for reduce tension and prevention of dirt ingress between the cover and frame. This in turn reduces any unwanted odours from escaping the manhole.

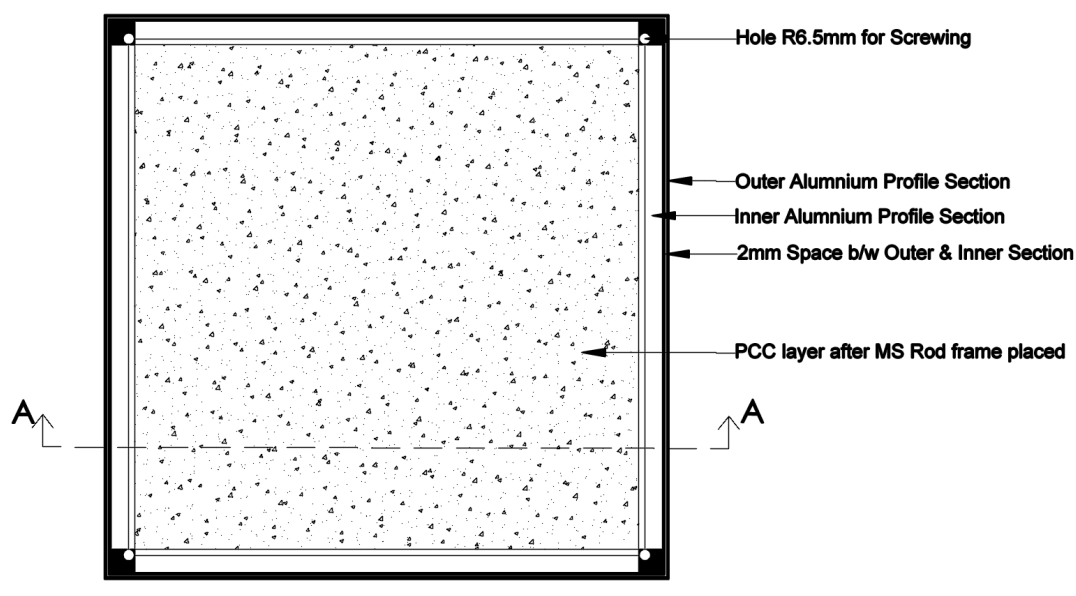

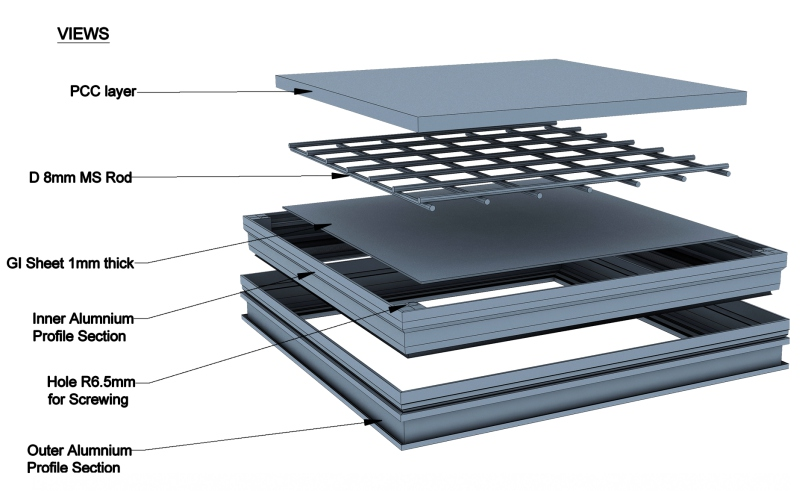

To improve the structural integrity of the cover once filled with your infill of choice, they are supplied with a reinforcement mesh which increases the load-bearing resistance of the cover infill.
Material | Aluminium 6063 |
---|---|
Shape | Square or Rectangular |
Anodised | Natural Aluminum Color |
Size | Standard & Customizable Sizes |
Load Capacity | Over 86.0 KN (600x600mm) with PCC filled up to 50 mm (without 20mm stone) |
Product Name | Size (MM) | Clear Opening (MM) | Frame Depth (MM) | Pit Size (MM) | Load Capacity |
---|---|---|---|---|---|
MHC450 | 450 × 450 | 440 ×440 | 73 | 300 ×300 - 350 ×350 | 92 KN |
MHC600 | 600 × 600 | 590 × 590 | 73 | 450 × 450 - 500 × 500 | 86 KN |
MHC750 | 750 × 750 | 740 × 740 | 73 | 600 × 600 - 650 × 650 | 80 KN |
Metaveil Drain Covers are thoughtfully and aesthetically designed drain covers which do not hamper the beautiful driveways or open areas of your building rather add a touch of design to it. These drain covers have a water-level system that prevent odour leak from the drains underneath. The Metaveil Drain Covers allow tiles or stone to be installed on top, blending in with the surrounding floor pattern with equal slots on all sides.
Anodised Aluminium frame & cover
Corrosion resistant
Easy to open with lifting keys included
Suitable for internal & external usage
Suitable for internal & external usage
Water-level system to prevent odour leak from underneath at the same time allowing excess water to drain down
Material | Aluminium 6063 |
---|---|
Shape | Square or Rectangular |
Anodised | Natural Aluminum Color |
Size | Standard & Customizable Sizes |
Load Capacity | Over 86.0 KN (600x600mm) with PCC filled up to 50 mm (without 20mm stone) |
Product Name | Size (MM) | Frame Depth (MM) | Pit Size (MM) | Load Capacity |
---|---|---|---|---|
DC450 | 450 × 450 | 82 | 360 × 360 | 62 + KN |
DC600 | 600 × 450 | 82 | 510 × 510 | 62 + KN |
DC3-600 | 750 × 750 | 82 | 210 × 510 | 62 KN |

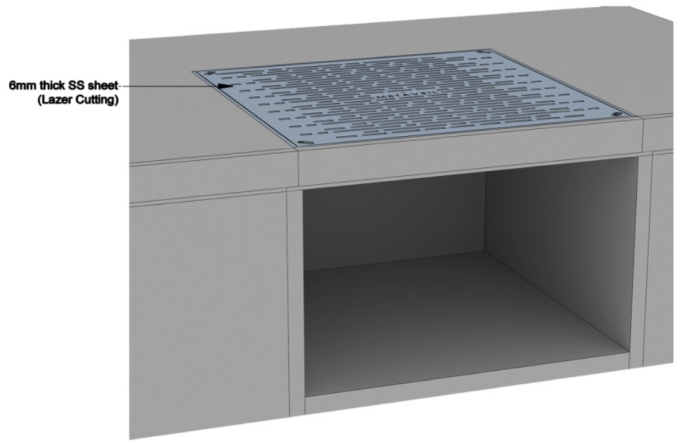

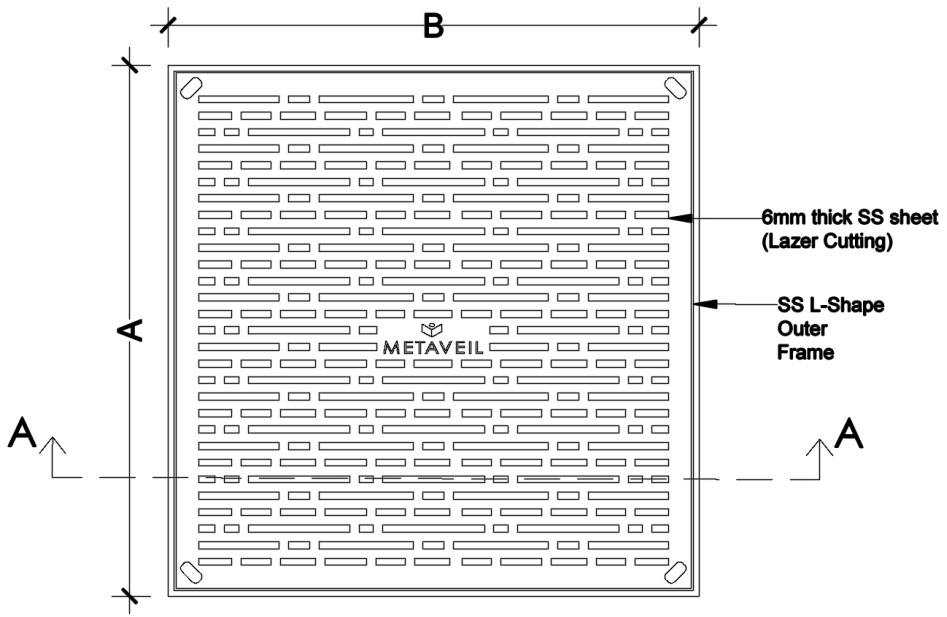

Metaveil Stainless Steel Designer Perforated Drainage Covers are laser cut 6mm thick SS patterns to suit the design language & theme of your architectural pattern with SS frame. These are aesthetic and sturdy floor flushed covers for open drains.
Stainless Steel (304 grade) frame & cover
Vertical bottom support for added strength
Corrosion resistant
Easy to open with lifting keys included
Suitable for internal & external usage
The designer patterns give the flooring aesthetically appealing look
Material | Stainless Steel 304 Grade |
---|---|
Shape | Square, Rectangular or Circular |
Size | Standard & Customizable Sizes |
Load Capacity | 58 KN – 86 KN ( 450x450 mm ) (design dependent) |
Product Name | Size (MM) | Frame Depth (MM) | Pit Size (MM) | Load Capacity |
---|---|---|---|---|
DPDC450 | 450 × 450 | 50 | 300 × 300 - 350 × 350 | 58 KN – 86 KN |
